Tol1-based Transgenesis Vector

Cosmo Bio USA

Tol1-based Transgenesis Vector

16

Research Use Only

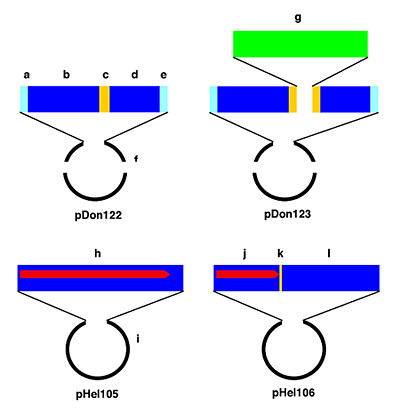

Donor and helper plasmids for transgenesis in vertebrates. Donor and helper plasmids for transgenesis in vertebrates. The donor plasmid contains terminal regions of the Tol1 element and multicloning sites for integration of a gene to be transferred to the host chromosome. The helper plasmid carries the transposase gene of the Tol1 element. Tol1 is a DNA transposon identified in the medaka fish and demonstrated to be active in various vertebrate species. Protocol: Recovering plasmid DNA 1. Cut out one of the circles of the paper and immerse it in water or TE in a microfuge tube. Other circles are for backup. 2. Mix by tapping. 3. Centrifuge for 1 minute at >10 krpm. 4. Transform competent bacterial cells (commonly used strains, such as JM109, DH5a and XL1-Blue) with a small amount of supernatant. 5. Spread the bacteria on an LB/agar plate containingl ampicillin, and incubate the plate at 37 oC for >12 hours. 6. Pick up a single colony. 7. Amplify bacteria in liquid media. 8. Extract plsmid DNA by the standard method.

12352202
